Car Transporter Trailer
Chassis Components
Cut the chassis rails and crossmembers as per the details below. Drill all the inner crossmembers and front/rear beams as shown to provide drainage for galvanising as well as for routing the light cables around the chassis.
Fold up the light channel and grind the 12mm rods to fit neatly into the light channel. Tack weld into position.

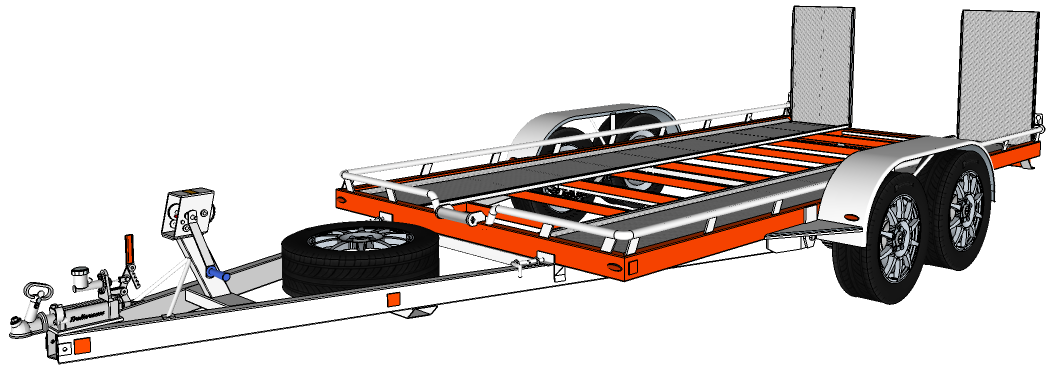

Next we will put the chassis together.
