Tow Dolly
Sub Chassis Components cont'd

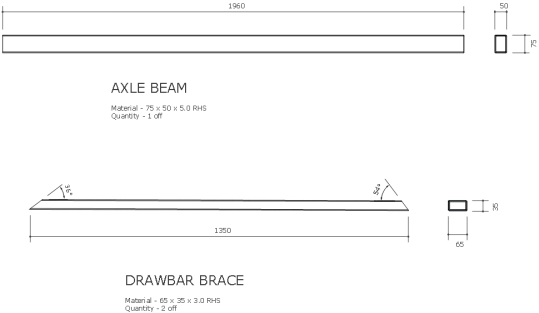

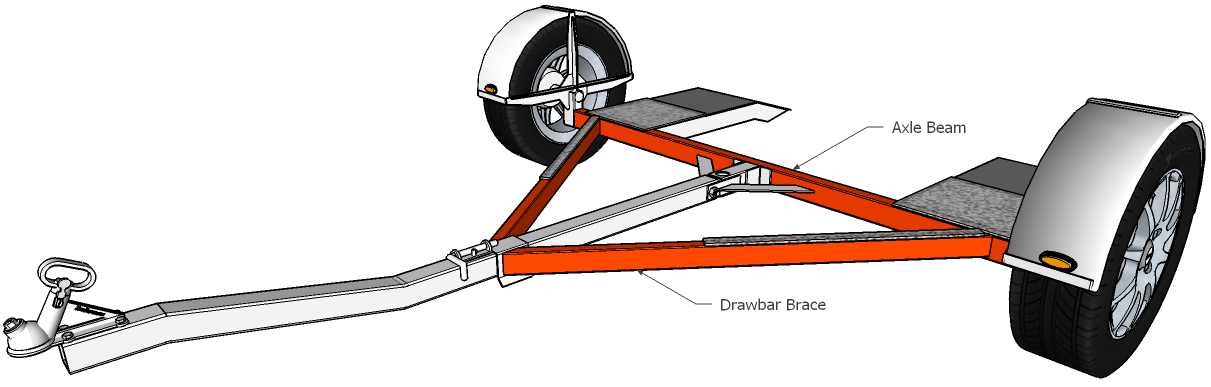

Cut the axle beam and drawbar braces as per the details below.
The axle beam can be extended up to 50mm overall to compensate for wheels/rims with an offset greater than 35P.
Cut the axle beam and drawbar braces as per the details below.
The axle beam can be extended up to 50mm overall to compensate for wheels/rims with an offset greater than 35P.
