Tow Dolly

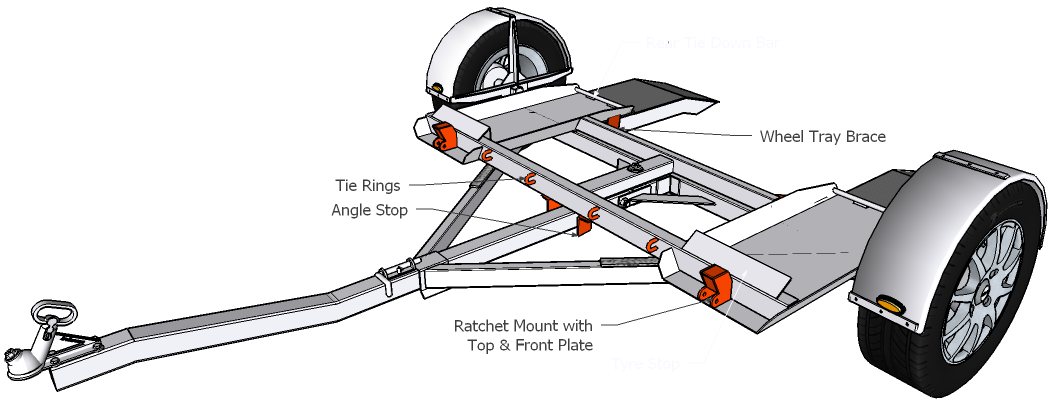

Top Deck Components


Click to Enlarge

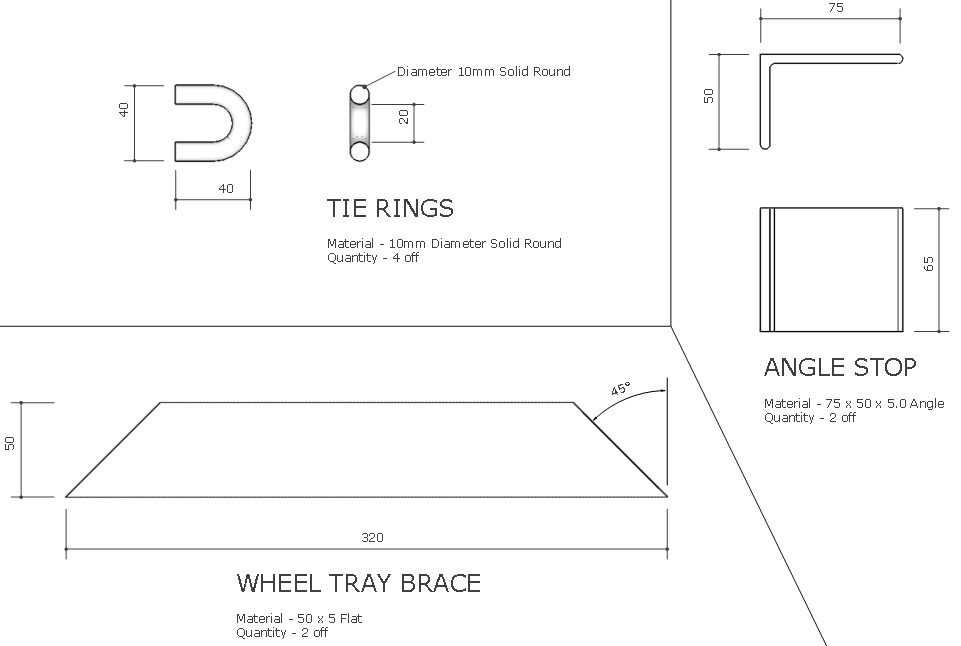

Now we come to the little components to finish off building the top deck.

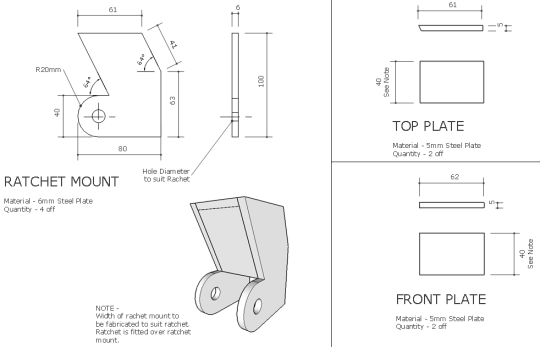

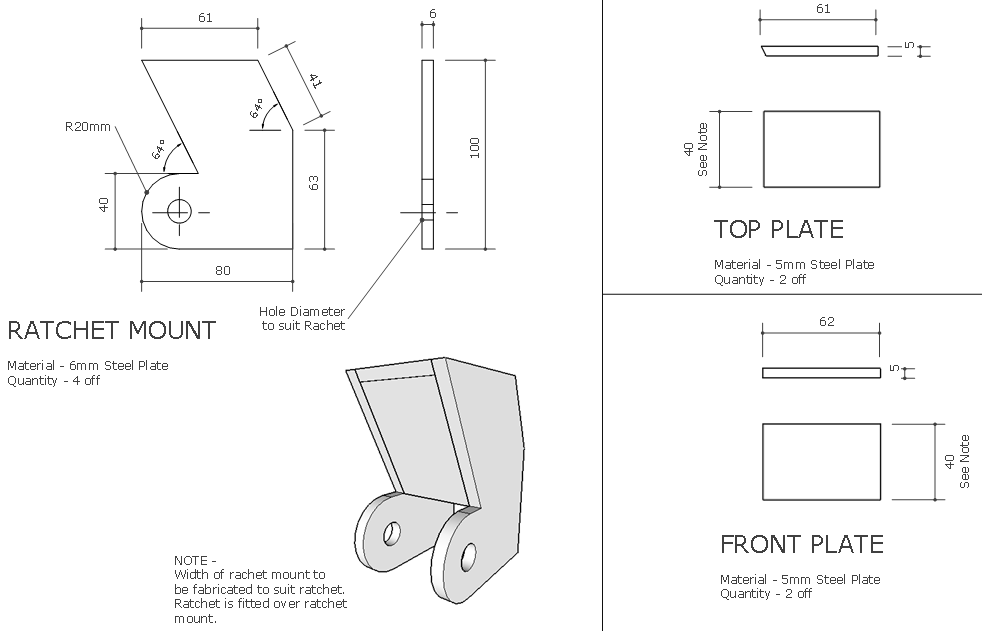

Before fabricating the ratchet mount, check the dimensions of the ratchet you will be using and adapt the dimensions of the top and front plate to suit.

Adjustments may need to be made to the hole diameter and hole position.
